Mobile Crushing Plant for Sale

Mobile Crushing Plant for Sale - 3463 Mobile Crushing Plant for Sale - 3463
Mobile Crushing Plant for Sale - 3463 Mobile Crushing Plant for Sale - 3463
Mobile Crushing Plant for Sale - 3463 Mobile Crushing Plant for Sale - 3463

Details

  • Price: 236 055 508 FCFA (Fixed price)
  • Region: North West
  • City: izmir
  • Location: - izmir torbali
  • Date: Oct 6, 2018
  • Category: utilty vehicle - vehicles
  • Product's condition: New

Contact the Advertiser

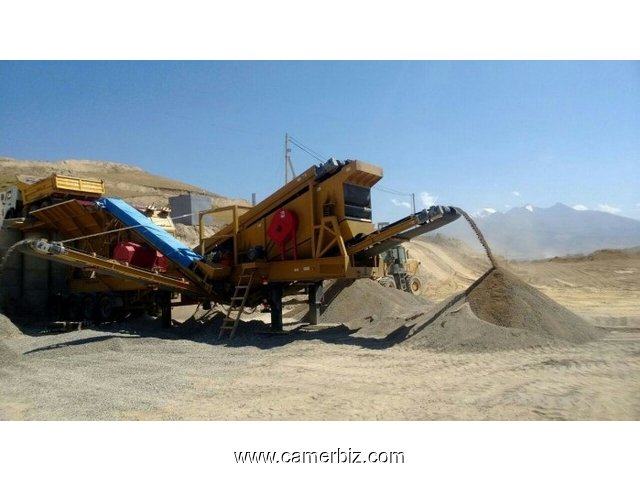

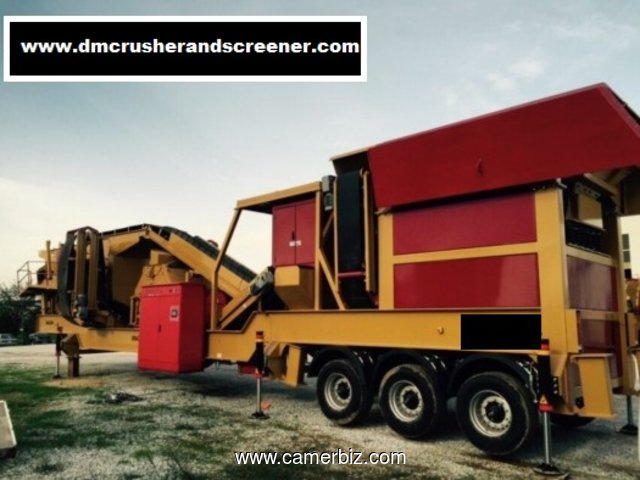

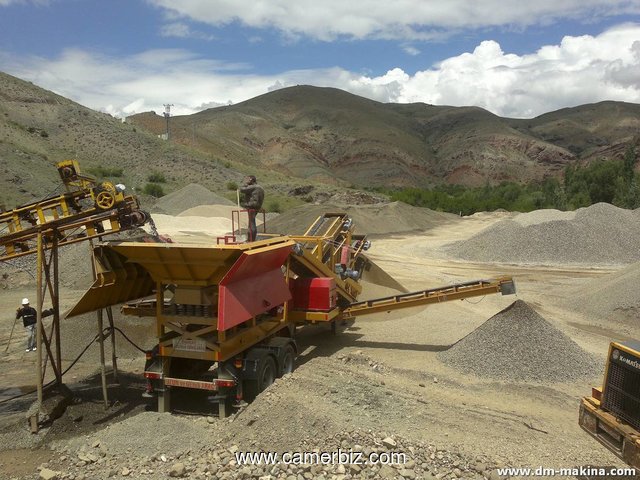

TURBO 950 – Mobile Closed Circuit Crusher and  Screening Plant – New Technology Hard Material Crusher / Basalt, Granite, River Stone, Mining, Limestone.

The TURBO 950 – Closed circuit crushing system is all collected in one single platform and can be transported with a truck. The R-D group has designed this series for short term installation .DM Series refers to a crushing /screening closed-circuit plant on one chassis. Offers unsurpassed production of cubical spec products for small, medium, or large jobs. Produces multiple, cubical spec products with three-deck inclined screen. This crushers can easily do the work of classical plants . This machines are the most prefered in Turkish market and the World market . Turbo series are the most suitable for Hard materials such as basalt , granite etc… as well as materials from iron ore , quartz and chrome.

Existing machinery and equipment in the system;

*Vibrating Feeder and Hopper
The feeder system is operating with  2 vibromotors (Italian Brand Oli ) which leads to  low maintenance and trouble-free operations.
The feeder  is suitable for feeding with Excavator and Loader and can be feed as well  with truck with an additional hopper.
All wear points in the feeder and in the hopper are protected by replaceable wear shields. At the points where wear may occur, wear arms are bolted and can be easily replaced.
The additional hopper can be opened and closed by the hydraulic system. This allows easy assembly and disassembly.
The feeding tray has a screening system. In this screening  system there is a zig zag type grill system which can eliminate the large materials easily .
By-pass conveyor allows sifted and thin materials  to be stocked in the stock area , or it can send this materials directly  to the main band by a clapper groove. Thanks to this clapper groove, the mine can be transported to the stock area without entering the stone crusher, or the main band can be feed. This is a factor that increases the capacity.

*Turbo 950 Jaw Crusher

Maximum Feeding Size : 900 X 650 mm
Crusher type : Primary
Motor power : 75 – 90 kw
There is setting mechanism which leads to easy configuration.
The wearing armor is 16-18% manganese and chromium alloy.

*Secondary Impact Crusher ( Hard Material Crusher )

The Rotor Size : 1300 X 1200 mm
The rotors are specially manufactured and have replaceable wear shields in their wear exposed parts.
Crusher type : Secondary Crushing Type.
Motor power : 160 – 200 kw
Rotor pallets are 16-18% manganese and chrome alloy. It is also suitable for two-sided use. Longer wear times can be caught on this count.
The setting blocks are 16-18% manganese and chrome alloy. The adjustment blocks have a hydraulic adjustment mechanism for easy adjustment.
Rotor pallets and adjustment blocks are used for very hard and abrasive ore stones, and high alloy chrome can be used depending on customer request.
It is unprecedented with high reduction rates of up to 100 times.
When a material that can not break enters into the crusher , the hydraulic overload prevention system blocks the circuit and the crusher elements are protected.

* Main Conveyor  Belt System
It is 1000 mm wide and is of palette type. Drive drums are rubber coated and threaded. The gear units are 3 transmission type and the new generation is with torque connection system. Side scraper system is available to prevent outflow.

* Vibrating Screen System
Screen Size : 1800 X 4500mm
Vibrating Screen Type : High Capacity
Motor Power: 15 kw
Three different sizes of screening.
Special type bearing suitable for vibration.

Other specifications

  • Mark: DM Crusher And Screener
